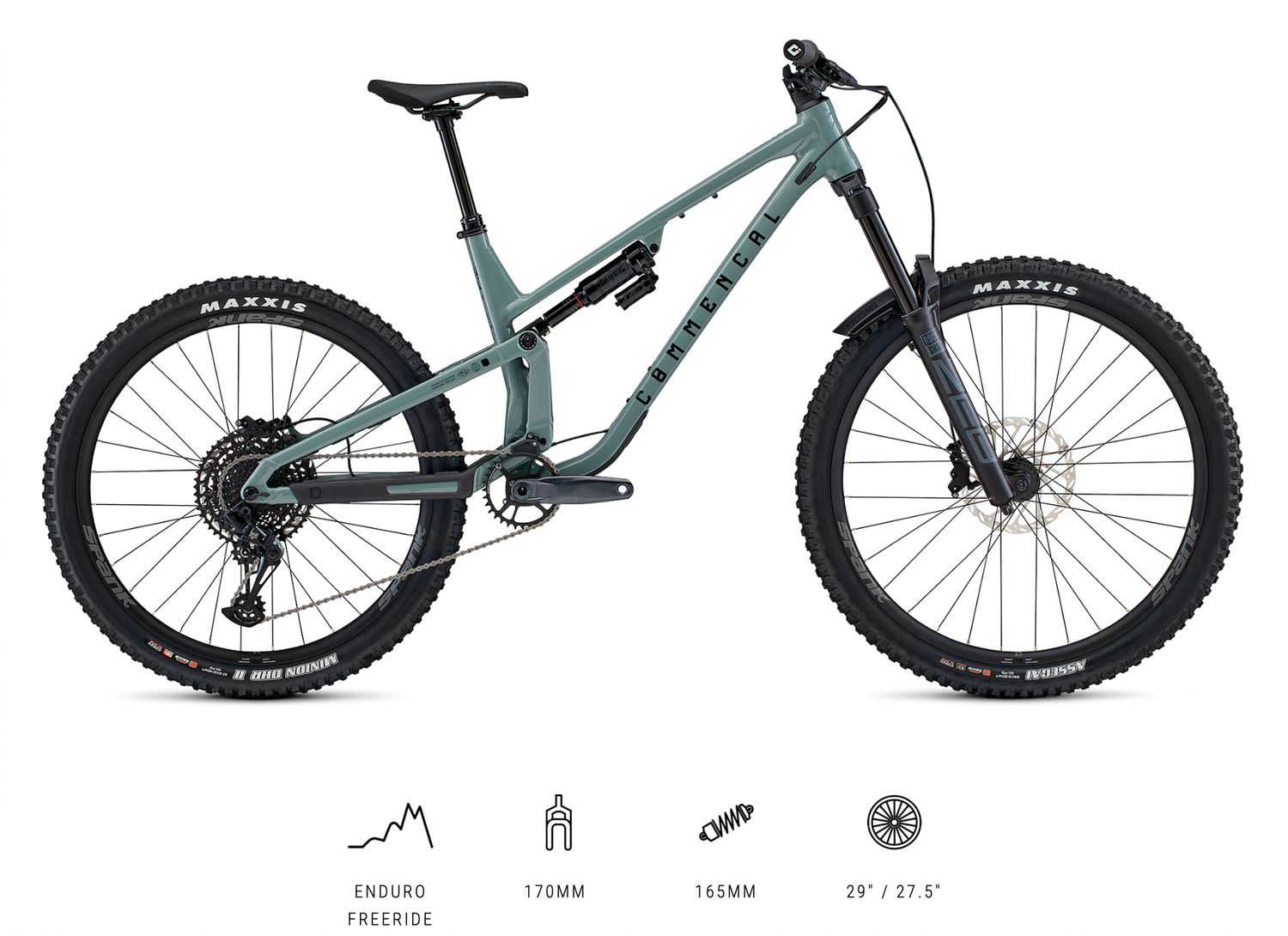

COMMENCAL META SX V5 RIDE PYRITE GREY
The META SX V5 is driven before its ridden. The 165mm of travel is combined with our VCS kinematics with virtual pivot point. Ready to be pinned and with monstrous grip, it is the ideal tool for riders looking for a mountain bike that feels like a mini-downhill rig in the bike park or on steep trails.
The META SX V5 RIDE is built around ROCKSHOX suspension and SRAM components.
• A 170mm Zeb fork offers a terrain-proof chassis with its 38mm stanchions. It inherits the new DebonAir + spring and the new Rush RC hydraulic cartridge. On the back, the Super Deluxe Select+ shock. Its end of stroke is better managed, and the additional cylinder increases oil volume for greater consistency.
• Braking comes in the form of the SRAM DB8s. They are reliable and easy to use.
• SPANK Spike Race 33 rims coupled with FORMULA hubs make up a robust and comfortable wheelset.
• A SRAM NX Eagle 12-speed drivetrain will allow you to shift gears smoothly.
Specifications
-
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6 -
Shock
ROCKSHOX Super Deluxe Select +
230 x 65 mm, RT damper, DebonAir, rebound, 2 position compression adjustment, 0 Token neg. 3 Tokens pos. -
Fork
ROCKSHOX Zeb Base, 170 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token -
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings -
Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm -
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL -
Grips
ODI Longneck
Soft compound, single clamp, black -
Brakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt -
Shifters
SRAM NX Eagle
12s -
Chain guide
RIDE ALPHA
32t-34t -
Rear derailleur
SRAM NX Eagle
12s -
Bottom bracket
SRAM DUB WIDE
Pressfit -
Crankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-Wide -
Chain
SRAM NX Eagle
12s -
Cassette
SRAM PG-1210
12s, 11-50t -
Rims
SPANK SPIKE RACE 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width -
Hubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm -
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black -
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready -
Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote -
Saddle
SDG Bel Air V3
140 mm width, steel rails -
Weight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances. -
Pedals included
No -
Colour
Pyrite Grey
Shiny Finish -
Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
Bike specifications are subject to change without notice.
